Define Relationships

The Define Relationships feature provides the functionality to set up relationships between entities.

Key Term:	Classes: define base configurations for products. Each class that is given to a product allows that product to have a more precise definition. There are multiple levels of classes that can be used in conjunction Example: Product, Single Article
Description:	This feature links two objects or entities in the system. An example of this linking is the relationship set for an Article to its target Market or a Market to an active Promotion.
Related topics:	Manage Media Links Define Article Links
Application:	The Define Relationships will allow an administrator to link an article or a product to its target market, which can be a location or a group of consumers that article/product is intended for.

How-to: Define Relationships

To define relationships, follow these steps:

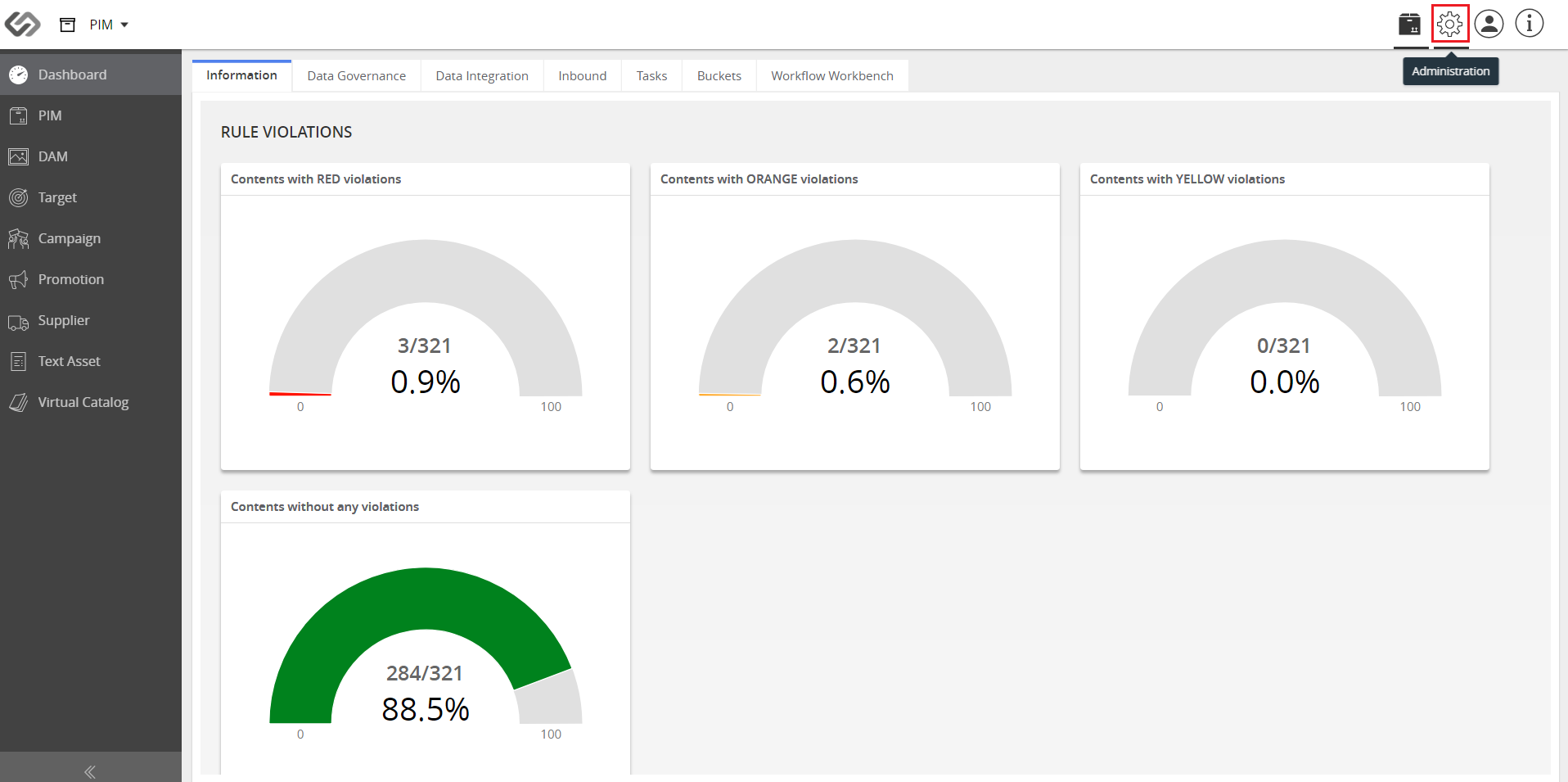

1. Log in and click on the Administration button.

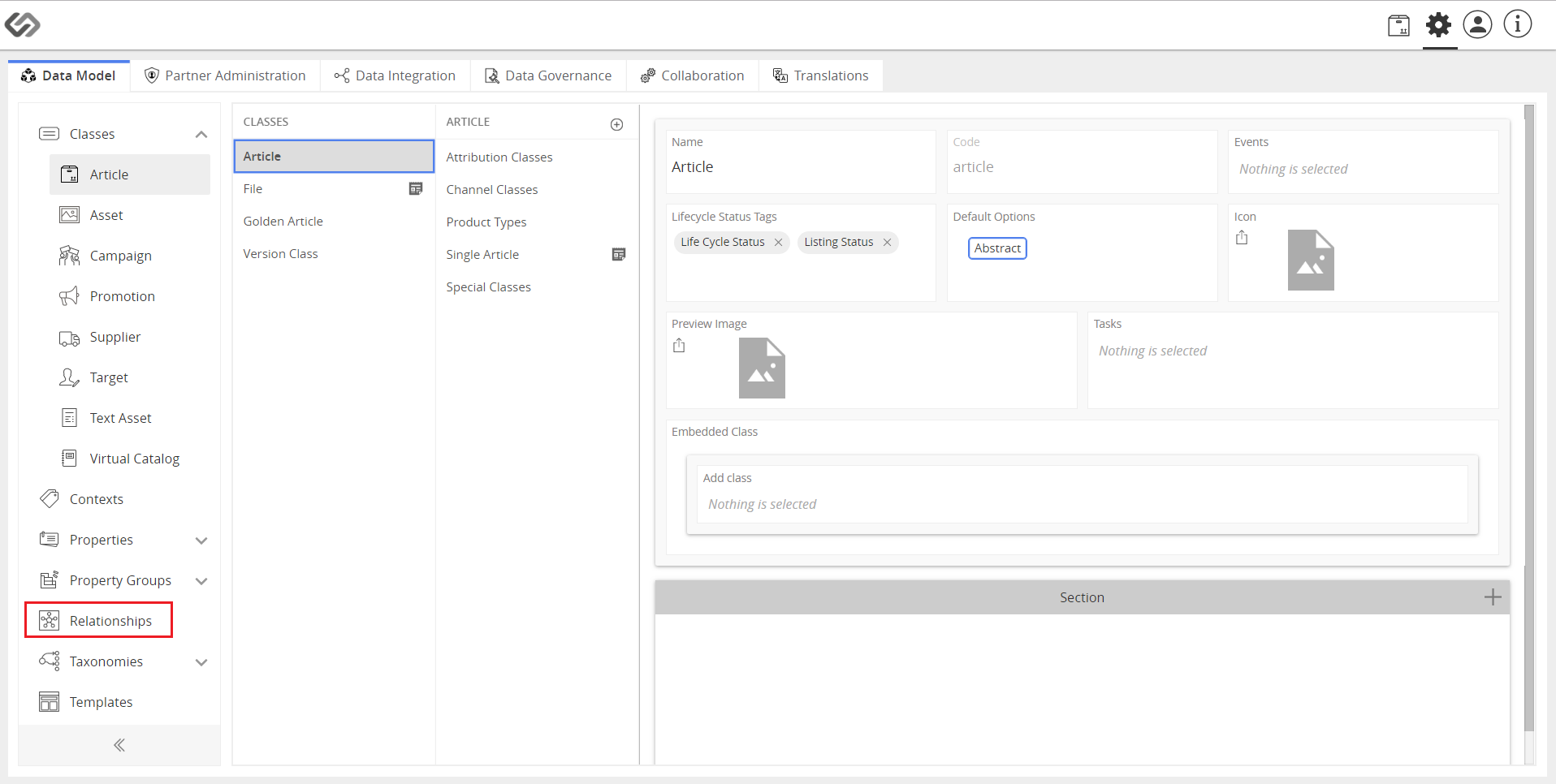

1. Click on Relationships.

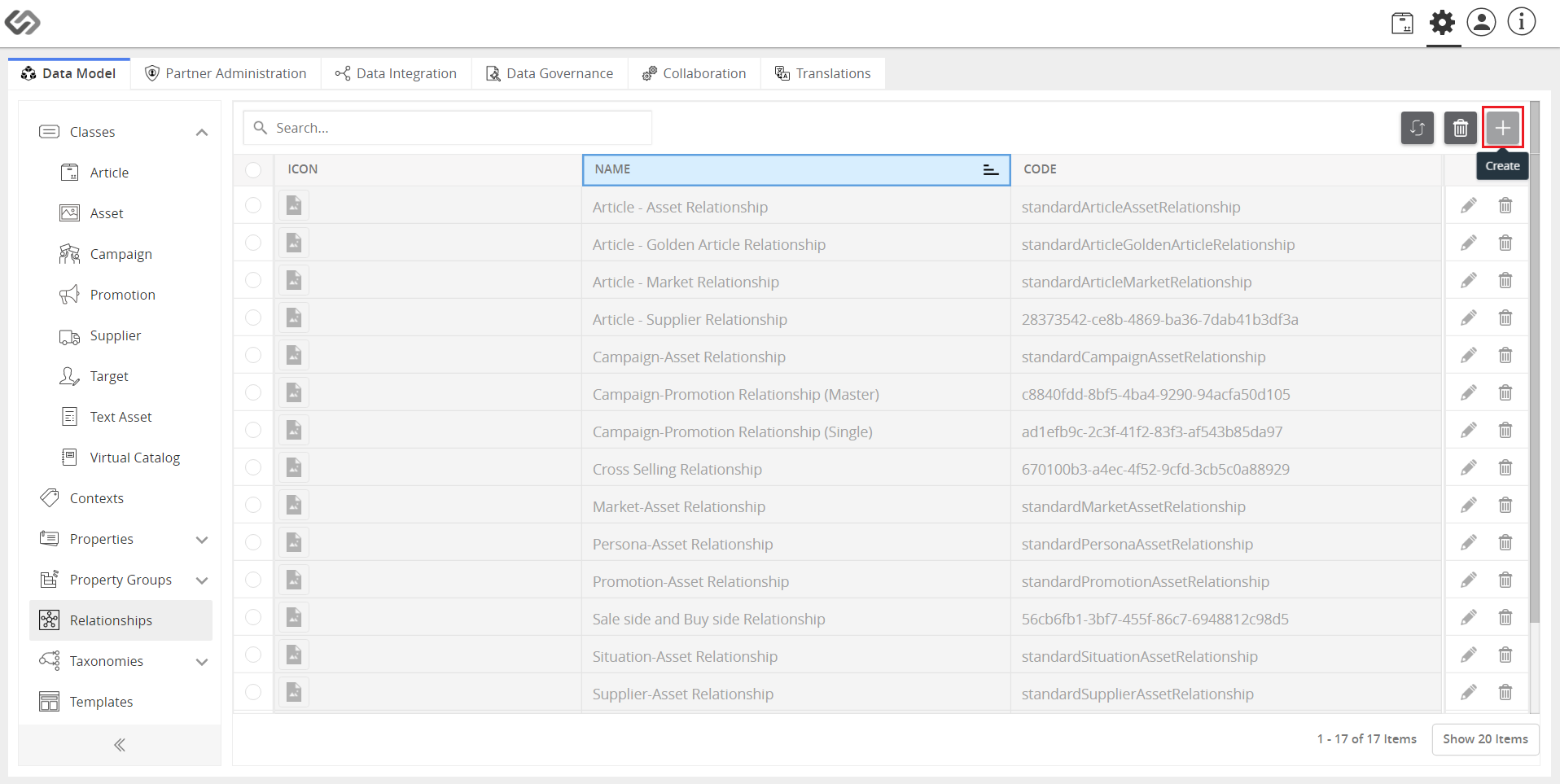

1. Click on the “+” icon to create a new relationship.

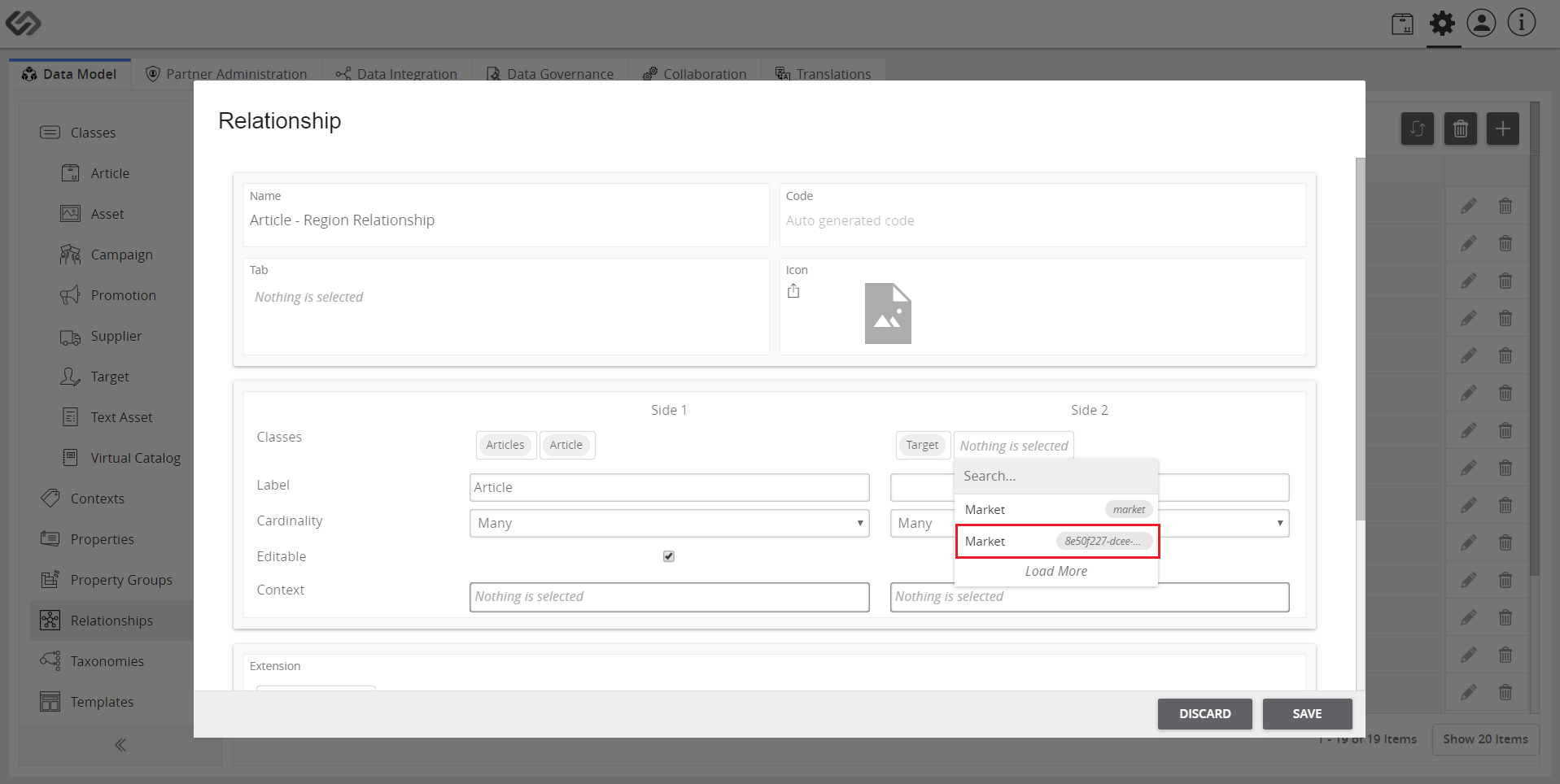

1. Enter a name for the relationship and select the two desired entity classes to be linked in Side1 and Side2 using the drop-down lists. In the example shown, a relationship is created for Article and the Region articles.

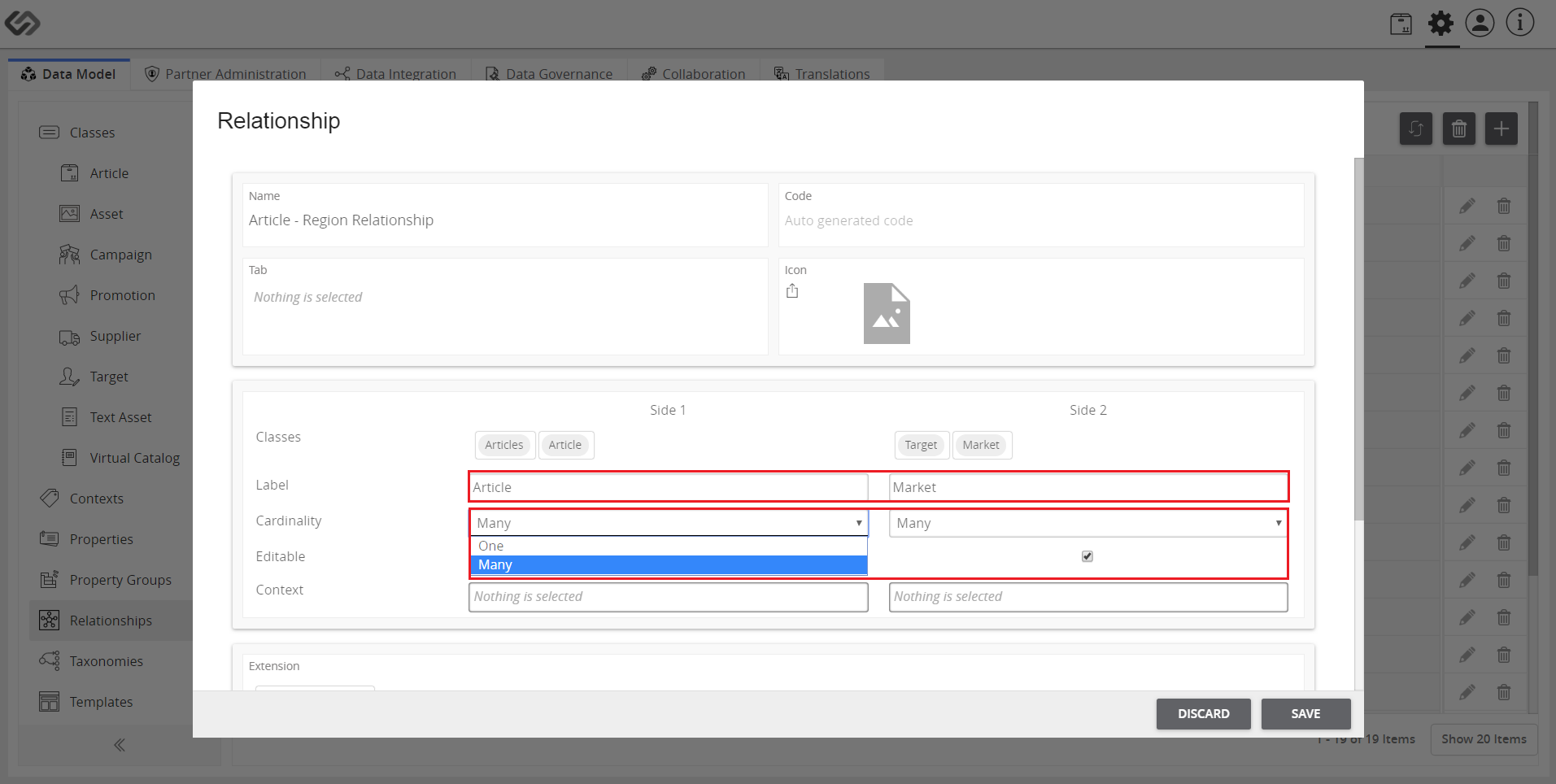

1. Enter the information for the Label and select the Cardinality of the relationship. In cardinality, choose either Many or One.

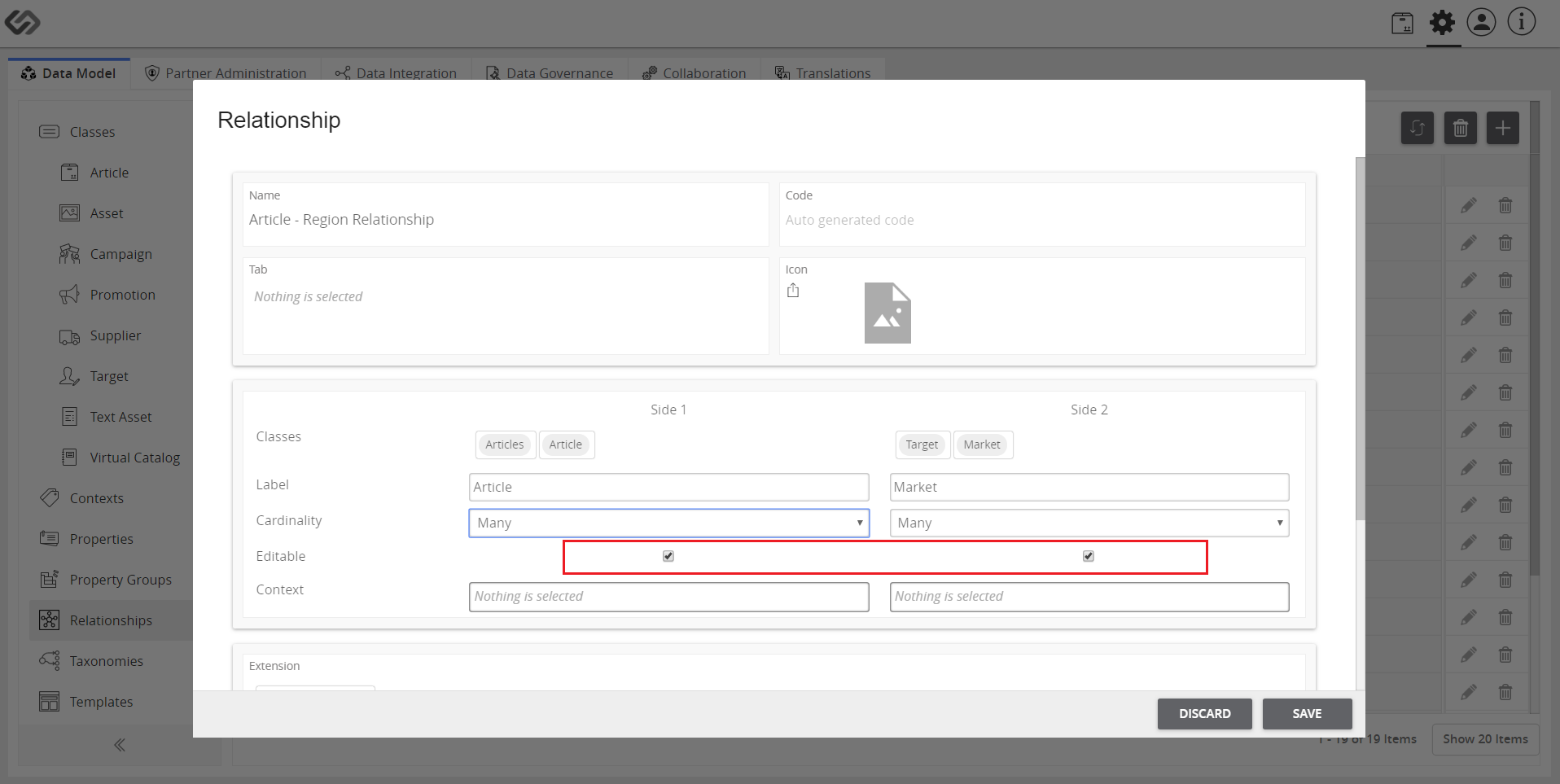

1. Tick on the checkboxes for the elements to be editable. Select either one or both sides.

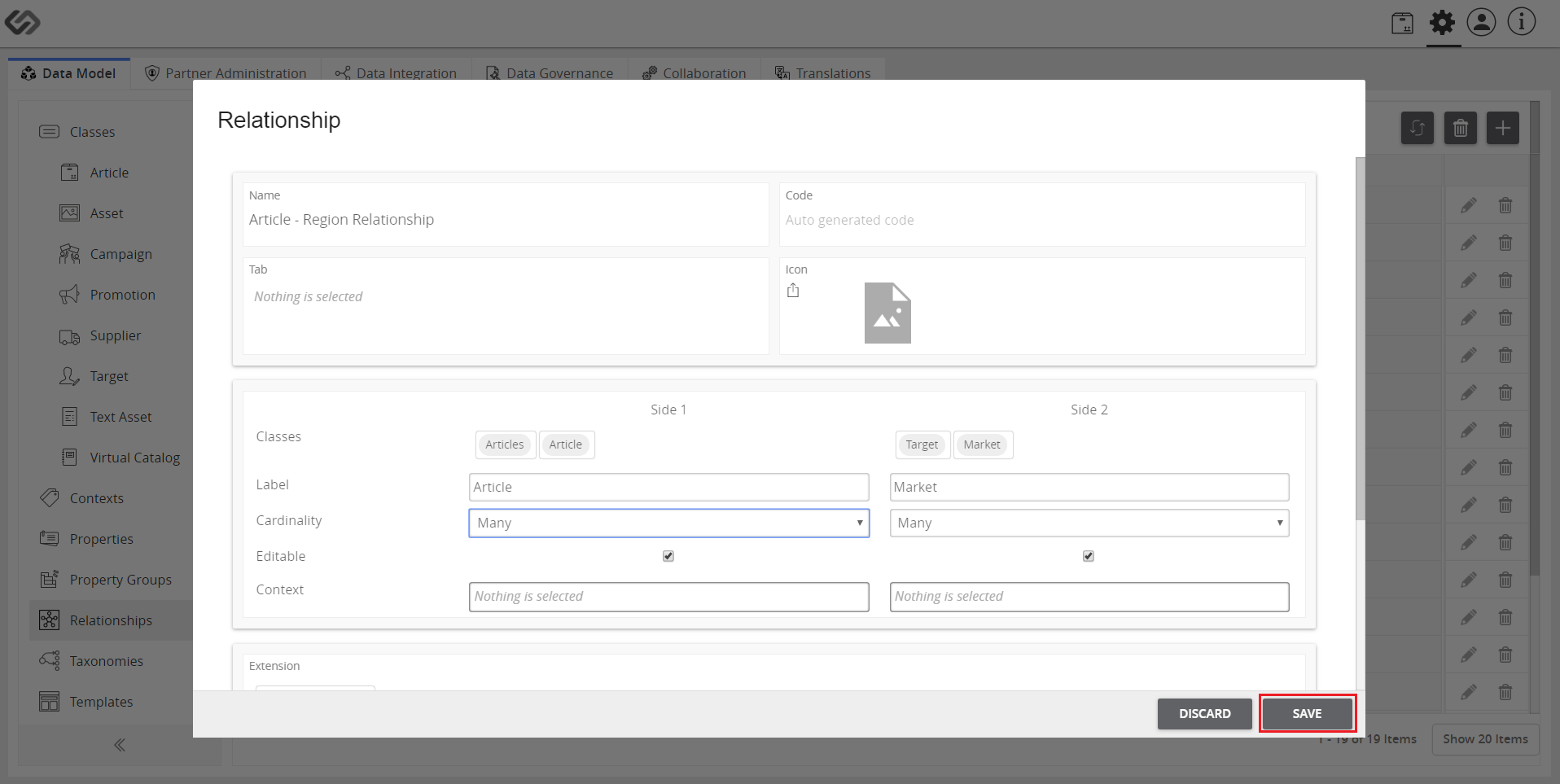

1. Once done, click on the Save button.

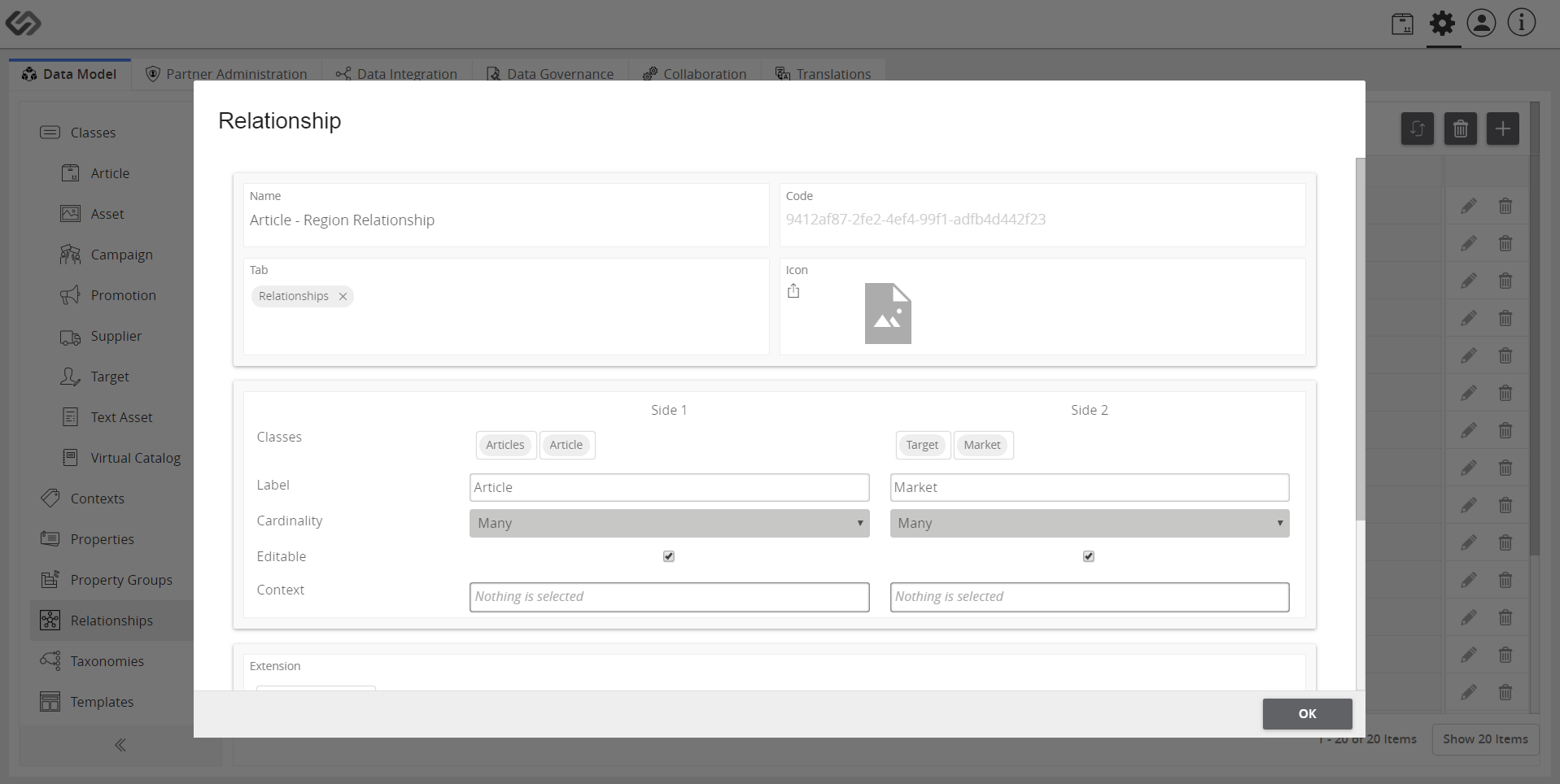

1. View the applied relationship.

Note: The Class and Cardinality will not be editable once the relationship is saved.

Last updated: Jul 27, 2018
